CLASSIFICATION
PRODUCT MODEL:WR-210-P5N-BW
WR-210-P5N-BW
PRODUCT SPECIFICATION:
Rating: 20A 125V AC
22A 250V AC (ENEC CB CQC)
Contact Resistance: 50mΩ Max
Insulation Resistance: DC 500V 100M Ω Min.
Dielectric Strength: AC1500V 1 minute
Operating Force: 600+150gf
Mechanical Life: Over 30,000 cycles
Electrical Life: Over 10,000 cycles
Operating Temperature: -20°C~+85°C
Protection type depending on mounting: IP65
22A 250V AC (ENEC CB CQC)
Contact Resistance: 50mΩ Max
Insulation Resistance: DC 500V 100M Ω Min.
Dielectric Strength: AC1500V 1 minute
Operating Force: 600+150gf
Mechanical Life: Over 30,000 cycles
Electrical Life: Over 10,000 cycles
Operating Temperature: -20°C~+85°C
Protection type depending on mounting: IP65
Application：
Computer Peripherals 電腦外設
Telecommunications network 電信網(wǎng)絡
TV Set-top box 電視機頂盒
Lamp Lighting 燈具照明
Consumer Electronics 消費類電子
Household appliances 家用電器
Car Rail Transportation 汽車軌道交通
Electronic toys 電子玩具
Power Tools Series 電動工具類
Industrial automation工業(yè)自動化

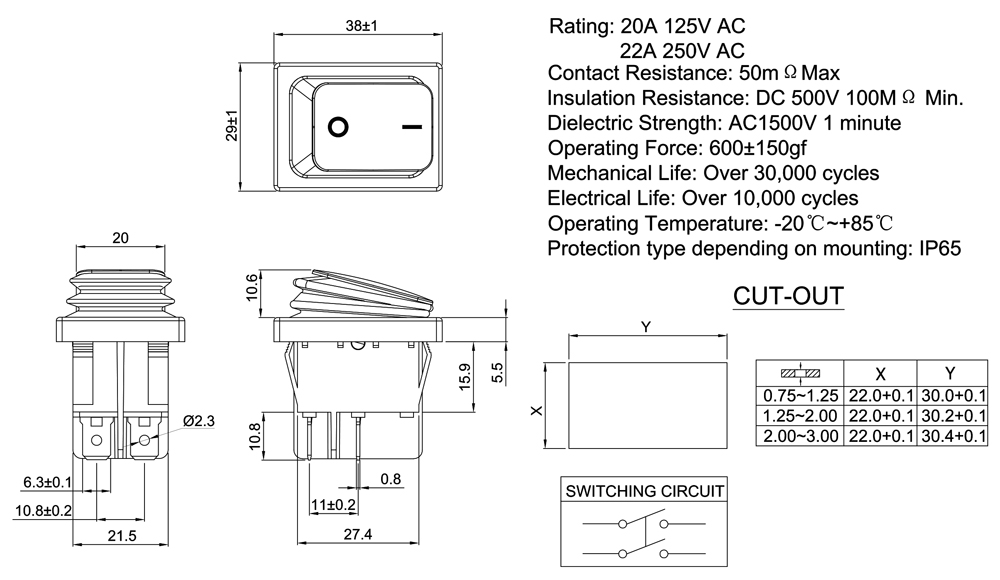

DRAWING

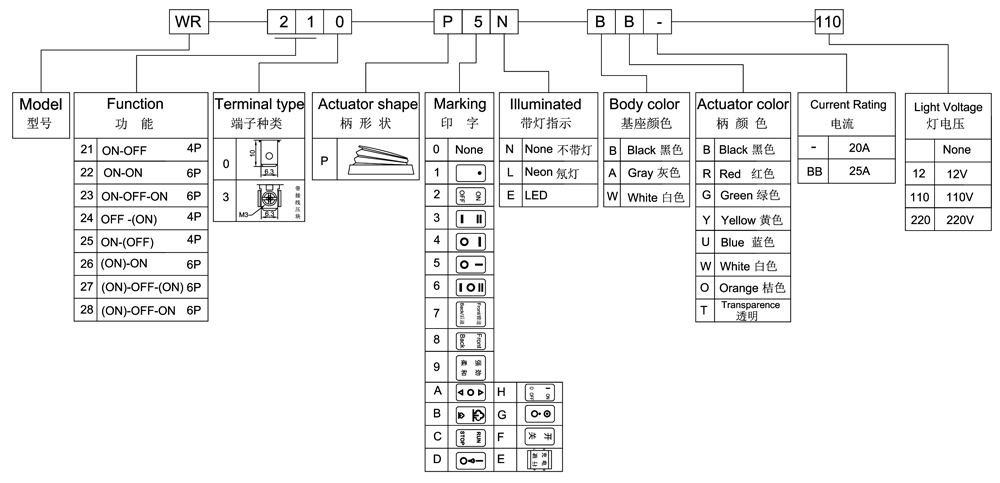

ORDER CODING DIAGRAM
