CLASSIFICATION
PRODUCT MODEL:R-210-DR0L-BB
R-210-DR0L-BB
PRODUCT SPECIFICATION:
Rating:20A 125V AC (UL CUL）
22A 250V AC (ENEC CB CQC)
Contact Resistance:50mΩ Max
Insulation Resistance:DC 500V 100MΩ Min
Dielectric Strength:AC 1500V 1 minute
Electrcal Life:600±150gf
Operating Temperature:Over 10,000cycles;
Safety Approval:-20°C~+85°C
Funtion
Application：
Computer Peripherals 電腦外設(shè)
Telecommunications network 電信網(wǎng)絡(luò)
TV Set-top box 電視機頂盒
Lamp Lighting 燈具照明
Consumer Electronics 消費類電子
Household appliances 家用電器
Car Rail Transportation 汽車軌道交通
Electronic toys 電子玩具
Power Tools Series 電動工具類
Industrial automation工業(yè)自動化

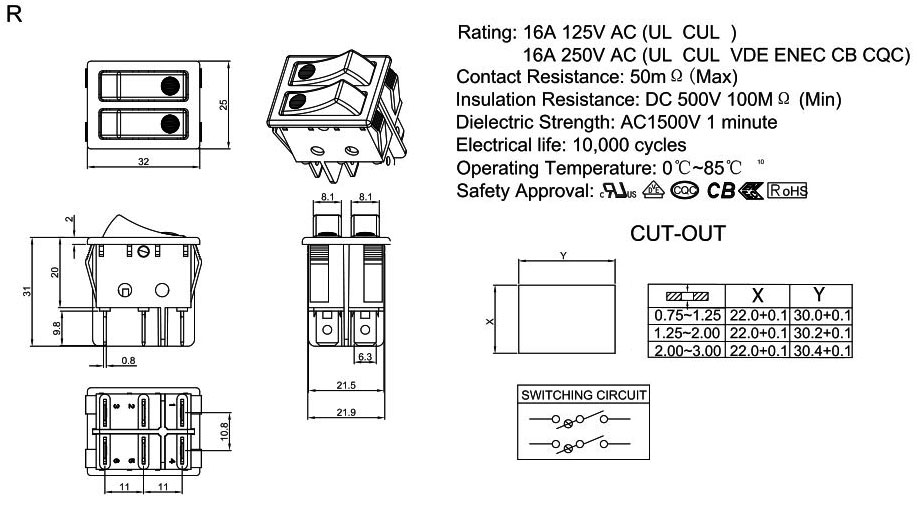

DRAWING
ORDER CODING DIAGRAM
