CLASSIFICATION
PRODUCT MODEL:X7-H10F2N-LBB1-1GWC
X7-H10F2N-LBB1-1GWC
PRODUCT SPECIFICATION:
ROCKER SWITCH MODEL: X7 SERIES .
RATING: 16(4)A 125/250VAC ~μT 125/55
DIELECTRIC WITHSTAND VOLTAGE: 1500VAC 1 MINUTE
INSUL ATION RESISTANCE: 500VDC 100M Q (MIN)
CONTACT RESISTANCE: 20m Q INITIAL (MAX.)
ILLUMINATION: 100~125VAC
WATERPROOF GRADE:IP67
RATING: 16(4)A 125/250VAC ~μT 125/55
DIELECTRIC WITHSTAND VOLTAGE: 1500VAC 1 MINUTE
INSUL ATION RESISTANCE: 500VDC 100M Q (MIN)
CONTACT RESISTANCE: 20m Q INITIAL (MAX.)
ILLUMINATION: 100~125VAC
WATERPROOF GRADE:IP67
Application：
Computer Peripherals 電腦外設
Telecommunications network 電信網絡
TV Set-top box 電視機頂盒
Lamp Lighting 燈具照明
Consumer Electronics 消費類電子
Household appliances 家用電器
Car Rail Transportation 汽車軌道交通
Electronic toys 電子玩具
Power Tools Series 電動工具類
Industrial automation工業自動化
DRAWING

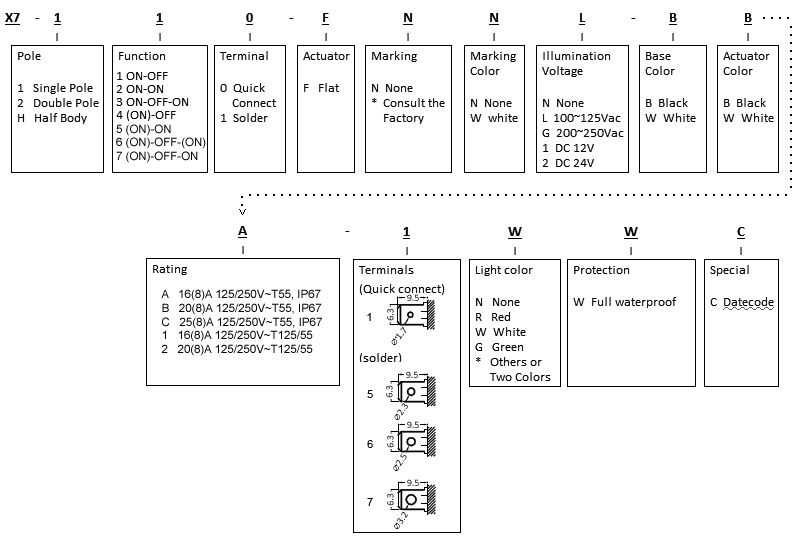

ORDER CODING DIAGRAM
