CLASSIFICATION
PRODUCT MODEL:TS6-A-00-00G-0-1
TS6-A-00-00G-0-1
PRODUCT SPECIFICATION:
Circuit :DPDT 2P2T
Current Rating :100mA
Voltage Rating :30VDC
Dielectric withstanding voltage :250VAC ftor 1 minute
Contact Resistance :100mΩ Max .(intial)
Insulation Resistance :100MΩ Min.
Operating Force :150±100(MOM)
Total Travel :1.6±0.4mm
Opearating life :50,000 Cycles Min
Soldear Specifications :260°C for 5 Seconds
Function :Momentary or self-lock
Openrating Temperature :-20°C~+ 70°C
Current Rating :100mA
Voltage Rating :30VDC
Dielectric withstanding voltage :250VAC ftor 1 minute
Contact Resistance :100mΩ Max .(intial)
Insulation Resistance :100MΩ Min.
Operating Force :150±100(MOM)
Total Travel :1.6±0.4mm
Opearating life :50,000 Cycles Min
Soldear Specifications :260°C for 5 Seconds
Function :Momentary or self-lock
Openrating Temperature :-20°C~+ 70°C
Application：
Audio / Visual 音響/視聽設備
Computer Peripherals 電腦外設
Consumer Electronics 消費類電子
Instrumentation 儀器儀表
Telecommunication 電信，通信設備
Medical Equipmen 醫療設備
DRAWING

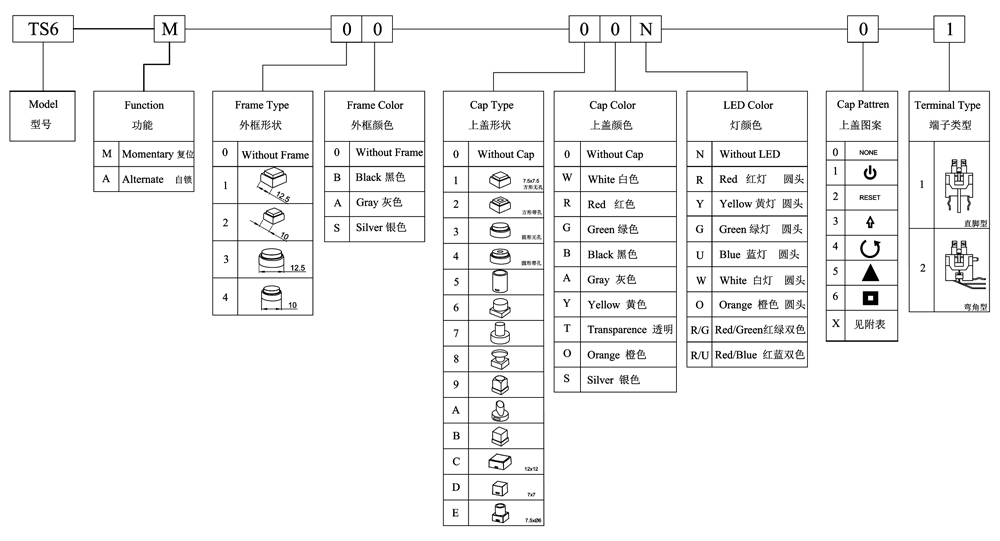

ORDER CODING DIAGRAM
