CLASSIFICATION
PRODUCT MODEL:PBM19-11M-R-NNN-S5
PBM19-11M-R-NNN-S5
PRODUCT SPECIFICATION:
Rating:5A 250VAC;:2A 36VDC;
Contact Resistance:50mΩ Max;
Dielectric Strength:1500VAC For 1minute;
Total Travel:1.5±0.5mm
Operating Force:600±200gf
Mechanical Life:200,000 Cycles;
Load Life:50,000 cycles;
Openrating Temperature:-20℃~70℃
Function:OFF-(ON) ON-OFF
Application：
電子門鎖系統(tǒng) Electronic lock system
酒店設備 Hotel equipment
通信醫(yī)療設備 Communication medical equipment
小家電 Small home appliance
航空航天船舶 Aerospace ship
汽車周邊產(chǎn)品 Automobile peripheral products

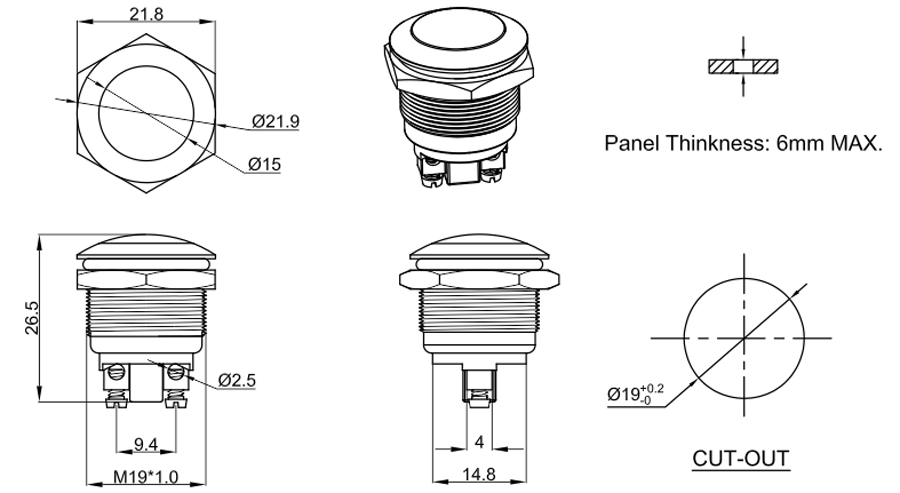

DRAWING

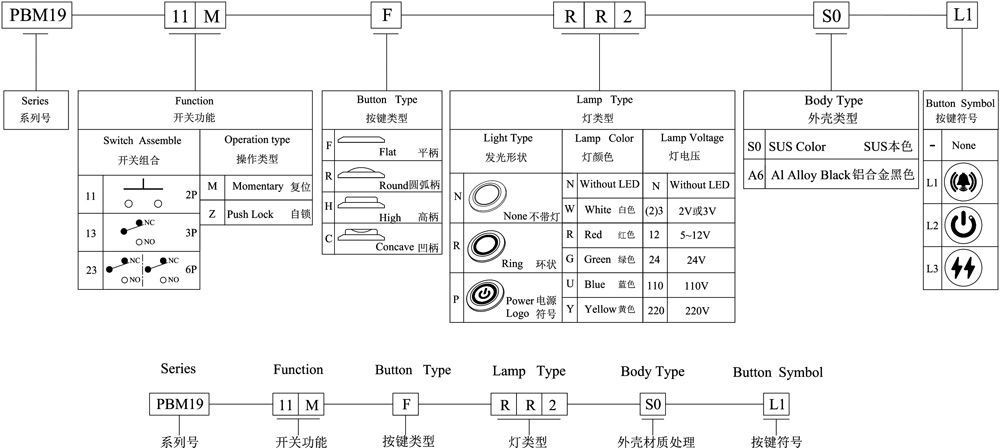

ORDER CODING DIAGRAM
