CLASSIFICATION
PRODUCT MODEL:PB07A-N-NU-MNN
PB07A-N-NU-MNN
PRODUCT SPECIFICATION:
Current Rating:250mA/120V/9W AC /6W DC
Dielectric withstanding voltage:1000VAC for 2 minute
Contact Resistance:100mΩ Max
Insulation Resistance:100MΩ Min.
Operating Force:250±50gf
Total Travel:1.8±0.4mm
Opearating Force:500,000 Cycles Min
Soldear Specifications:256℃ for 5 Seconds
Openrating Temperature:-40℃~+160℃
Application：
Lighting Fixtures 照明燈具
Automated production 自動化生產
Instruments and meters 儀器儀表
Professional Audio 專業音響
Testing equipment 檢測設備
Electrical toys 電動玩具
Testing equipment 檢測設備
Electrical toys 電動玩具

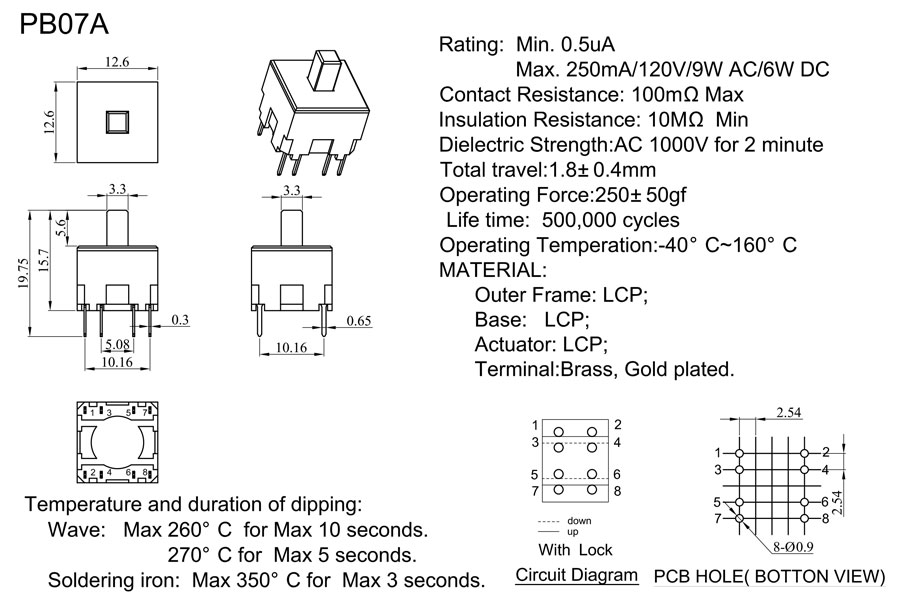

DRAWING
ORDER CODING DIAGRAM
