CLASSIFICATION
PRODUCT MODEL:PB07-BB-1R0
PB07-BB-1R0
PRODUCT SPECIFICATION:
Current Rating:100mA
Voltage Rating:30VDC
Dielectric withstanding voltage:250VAC for 1 minute
Contact Resistance:100mΩ Max .(intial)
Insulation Resistance:DC500V 100MΩ Min.
Operating Force:200±100gf
Total Travel:2.5±0.5mm
Opearating Force:200,000 Cycles Min
Soldear Specifications:256℃ for 5 Seconds
Openrating Temperature:-20℃~+70℃
Application：
Lighting Fixtures 照明燈具
Automated production 自動化生產(chǎn)
Instruments and meters 儀器儀表
Professional Audio 專業(yè)音響
Testing equipment 檢測設(shè)備
Electrical toys 電動玩具
Testing equipment 檢測設(shè)備
Electrical toys 電動玩具

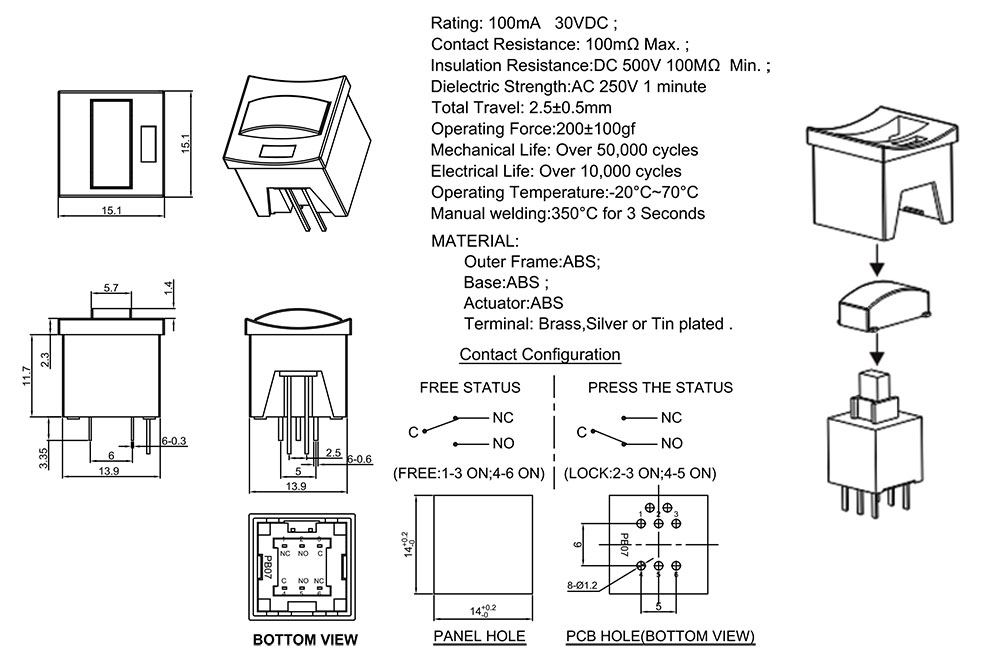

DRAWING
ORDER CODING DIAGRAM
