CLASSIFICATION
PRODUCT MODEL:PB16-A-F-RR
PB16-A-F-RR
PRODUCT SPECIFICATION:
Circuit :SPST
Switch voltage rating :1.5A 250VAC,3A125VAC
Dielectric withstanding voltage:1500VAC for 1 minute
Contact resistance :20m Ω Max.(Initial)
Insulation resistance :100M Ω Min.
Electrical Life :25,000 cycles Min
Function :OFF-ON
Operating temperature :-25°C~+85°C
Application：
? Communication equipment,通信設備
? wireless application equipment 無線設備
? wireless application equipment 無線設備
? Electronic tester 電子測試。
? Automation equipment 自動化設備
? Transaction Equipment 交通運輸設備
? Electronic equipment for people\’s livelihood
民用電子設備
? Automation equipment 自動化設備
? Transaction Equipment 交通運輸設備
? Electronic equipment for people\’s livelihood
民用電子設備

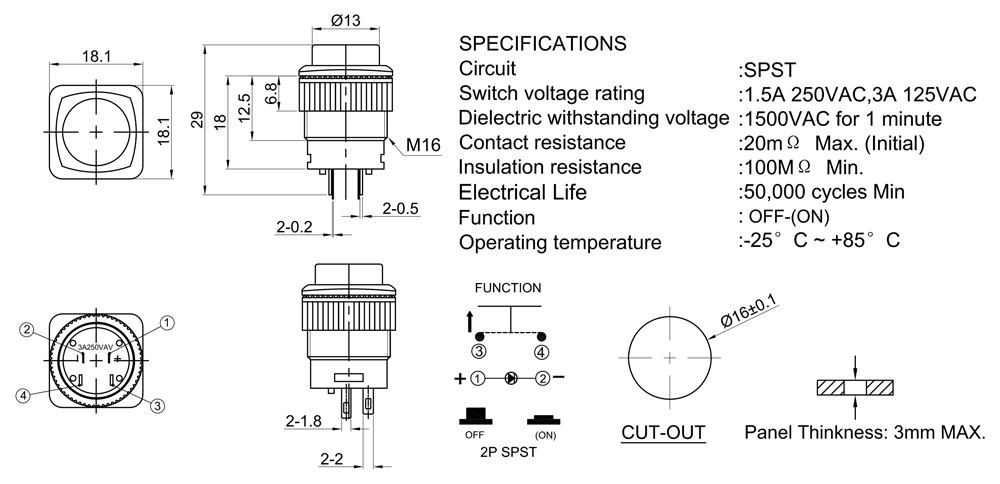

DRAWING
ORDER CODING DIAGRAM
