CLASSIFICATION
PRODUCT MODEL:PB09B-Z-210-F0N-BB
PB09B-Z-210-F0N-BB
PRODUCT SPECIFICATION:
Rating:10A 125V AC /6A 250VAC
Contact Resistance:50mΩ Max
Insulation Resistance:DC500V 100mΩMin
withstand Voltage:1500VAC for 1 Minute
Operating Force:700±200gf
Travel:5.0±0.5mm
Life Cycle:10,000Cycles Min
Function:OFF-ON
Application：
Typical Applications 應用領域
? Telecom network equipment電信網絡設備
? Automotive electronics自動化設備
? Consumer electronics 消費類電子
? Computer, server, modem,電腦，服務器
data storage 光貓，數據儲存器
? Professional medical instrumentation,專業醫療設備
DRAWING

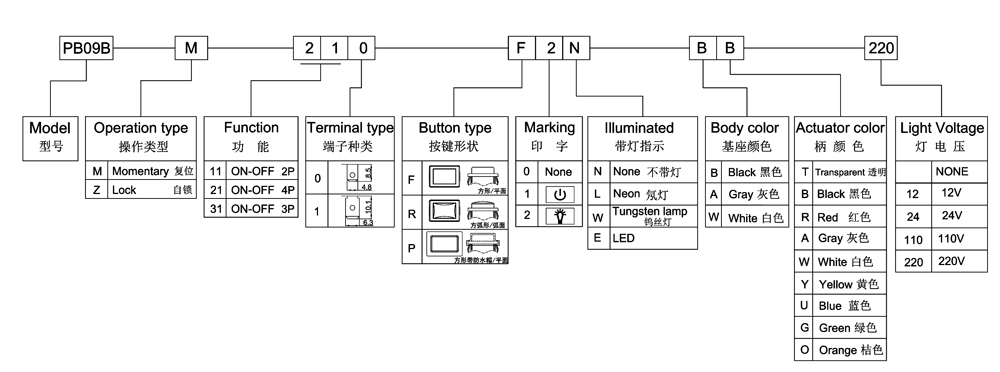

ORDER CODING DIAGRAM
