CLASSIFICATION
PRODUCT MODEL:FNR-13R-O-P
FNR-13R-O-P
PRODUCT SPECIFICATION:
Electrical Ratings:10mA @ 5VDC max. Logic Level
Electrical Life:1,000,000 cycles
Max Power:0.5 VA
Voltage:20-32VDC
Current:1-50mA
DWV:250 Vrms
Mechanical Life:1 .000,000 cycles
Switch Contact Seal:IP68S
Temperature Range:-40°C to +85°C
Wire:26 AWG UL 11028 Wire
Electrical Life:1,000,000 cycles
Max Power:0.5 VA
Voltage:20-32VDC
Current:1-50mA
DWV:250 Vrms
Mechanical Life:1 .000,000 cycles
Switch Contact Seal:IP68S
Temperature Range:-40°C to +85°C
Wire:26 AWG UL 11028 Wire
Application：
True ON-ON-ON triple-throw switch options真正的實現ON-ON-ON三檔開關功能
Switch contacts sealed to IP68S. With the optional開關防水達IP68S級別。
Tested up to 1 million cycles 開關壽命達100萬次
Maintained or momentary action, single or double pole Logic level only
開關可以做到單極與雙極邏輯控制
Standard and large rocker style sizes
開關柄可以定制
Mining vehicle 應用于礦用車輛
Large agricultural machinery大型農業機械
Aerial work vehicle 高空作業車輛

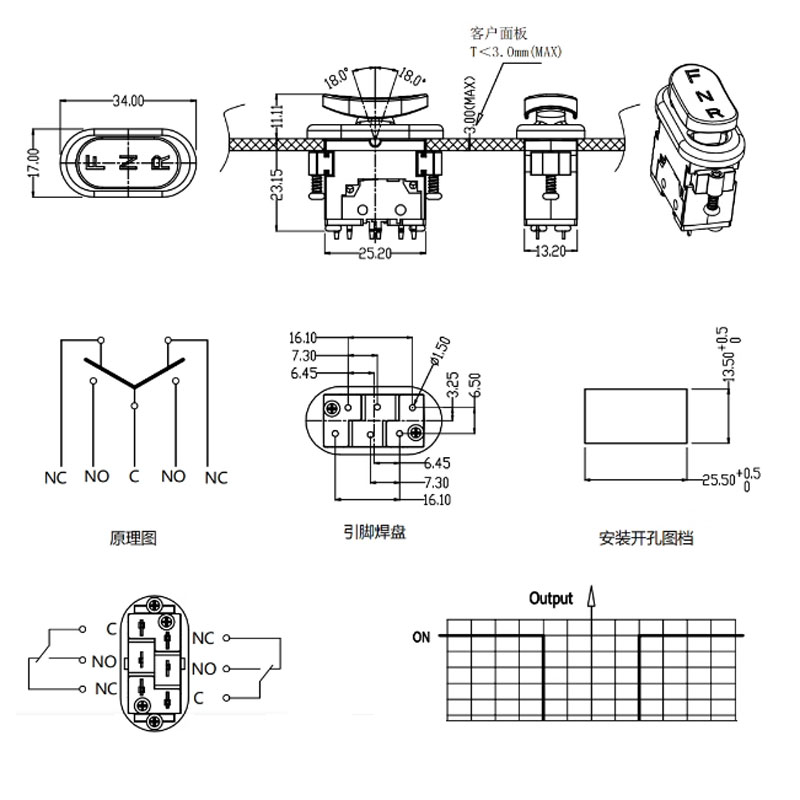

DRAWING
ORDER CODING DIAGRAM
