CLASSIFICATION
PRODUCT MODEL:FNR-15-MR-Y-W
FNR-15-MR-Y-W
PRODUCT SPECIFICATION:
Rating:2A 30VDC;
Degree of protction:IP67;
Contact Resistance:50m ΩMax；
Dielectric Strength:1000VAC For 1 minute
Operating Force:600±200gf；
Mechanical Life:1,000,000 cycles；
Operating Temperation:-40°C~85°C;
Degree of protction:IP67;
Contact Resistance:50m ΩMax；
Dielectric Strength:1000VAC For 1 minute
Operating Force:600±200gf；
Mechanical Life:1,000,000 cycles；
Operating Temperation:-40°C~85°C;
Application：
True ON-ON-ON triple-throw switch options真正的實現ON-ON-ON三檔開關功能
Switch contacts sealed to IP68S. With the optional開關防水達IP68S級別。
Tested up to 1 million cycles 開關壽命達100萬次
Maintained or momentary action, single or double pole Logic level only
開關可以做到單極與雙極邏輯控制
Standard and large rocker style sizes
開關柄可以定制
Mining vehicle 應用于礦用車輛
Large agricultural machinery大型農業機械
Aerial work vehicle 高空作業車輛

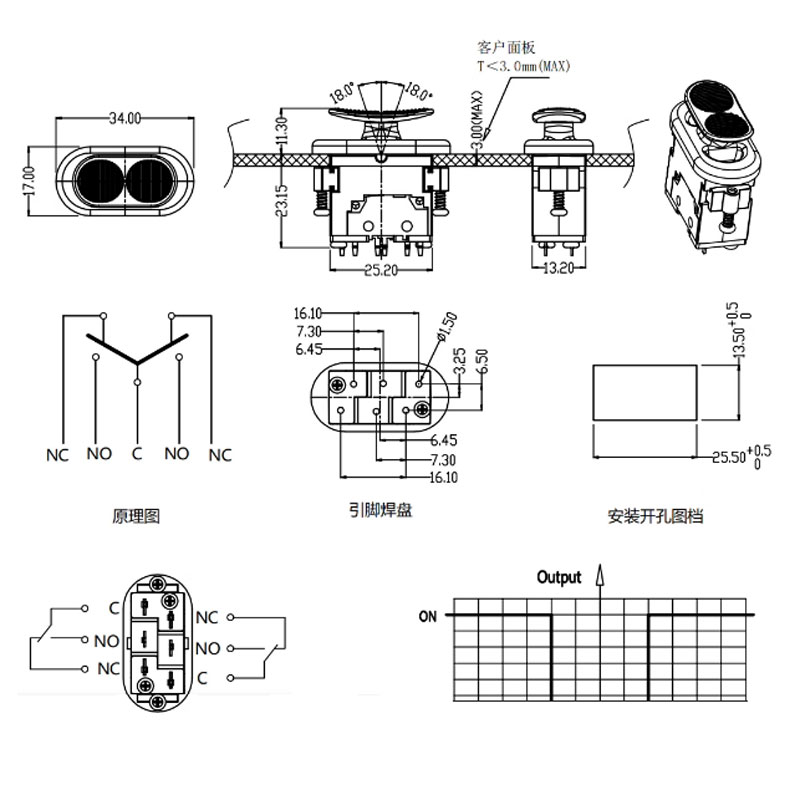

DRAWING
ORDER CODING DIAGRAM
