PRODUCT MODEL:S-03DF-21S 雙保險絲座
S-03DF-21S 雙保險絲座
PRODUCT SPECIFICATION:
Rating:
10A 250VAC 1.6W (ENEC K-MARK)
10A 250VAC 1.6W (CCC)
Insulation Resistance:DC 500V 100MΩ Min
Dielectric Strength:AC 2000V1minute
Fuse:?5.0x20mm
MATERIAL:
Base: PBT,UL rated:94 V-0 Min;
Cap: PA66;
10A 250VAC 1.6W (ENEC K-MARK)
10A 250VAC 1.6W (CCC)
Insulation Resistance:DC 500V 100MΩ Min
Dielectric Strength:AC 2000V1minute
Fuse:?5.0x20mm
MATERIAL:
Base: PBT,UL rated:94 V-0 Min;
Cap: PA66;
Terminal: Brass,Tin plated
Application：
Circuit overload Protection電路過載保護(hù)
Automotive Electronics 汽車電子
Household appliances 家用電器
Beauty Equipment 美容器材
Medical equipment 醫(yī)療設(shè)備
Instruments and meters 儀器儀表

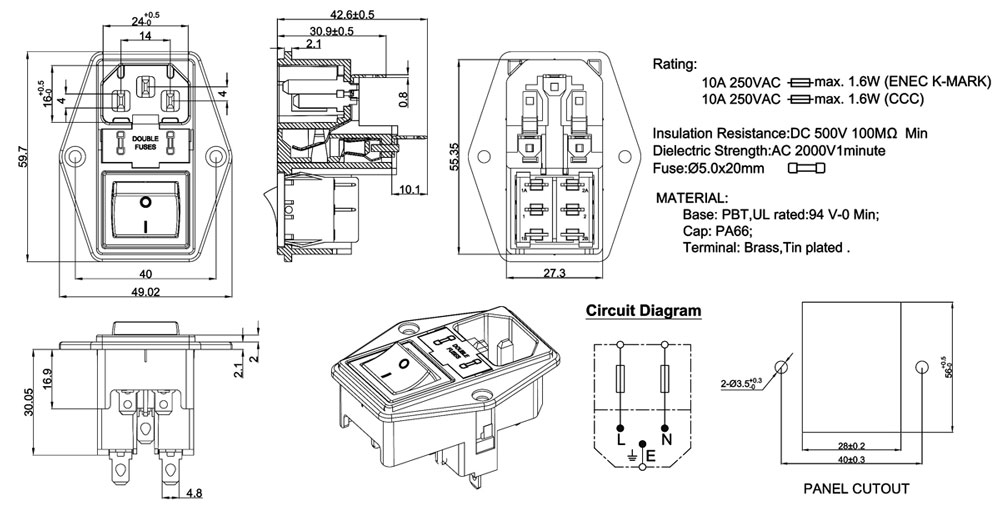

DRAWING

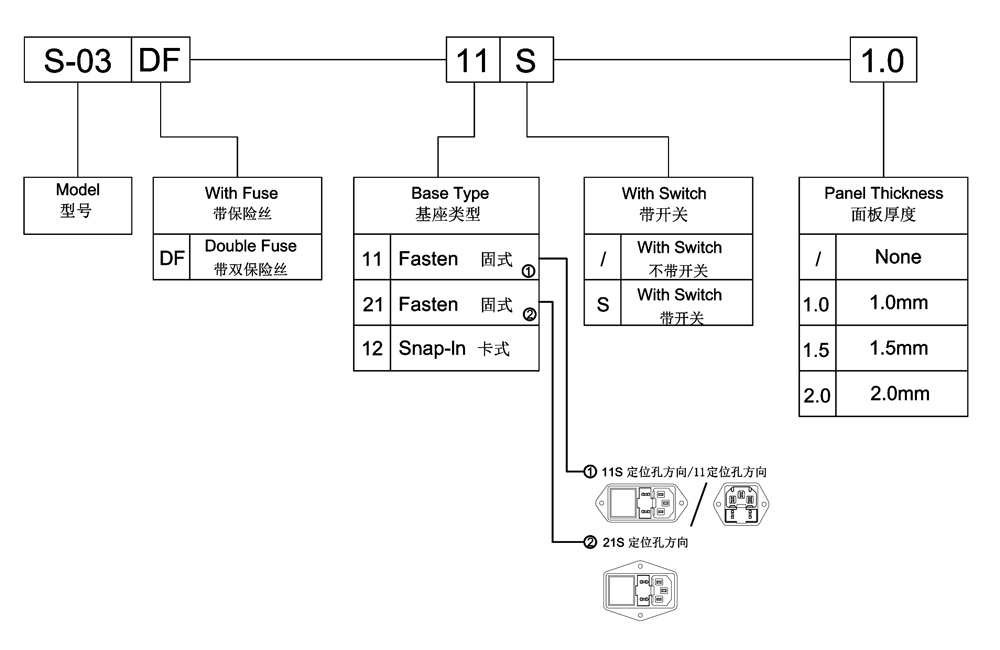

ORDER CODING DIAGRAM
