CLASSIFICATION
PRODUCT MODEL:RM19-13Z2-AG6-S
RM19-13Z2-AG6-S
PRODUCT SPECIFICATION:
Rating:3A 250VAC
Installation dimension:16.19.22mm;
Dielectric Strength:1000VAC for 1 Minute
Total Travel:1.2±0.4mm;
Operating Force:200±50gf;
Mechanical Life:50,000Cycles
Operating Temperature:-20°C~85°C;
Function:ON-ON
Installation dimension:16.19.22mm;
Dielectric Strength:1000VAC for 1 Minute
Total Travel:1.2±0.4mm;
Operating Force:200±50gf;
Mechanical Life:50,000Cycles
Operating Temperature:-20°C~85°C;
Function:ON-ON
Application：
? Outdoor Controls ·戶外控制
? Security Equipment ·安全設備
? Medical Equipment ·醫療設備
? Food Processing Equipment ·食品加工設備
? Military Equipment ·軍用設備
? Industrial Machinery ·工業機械
? Transportation: Mass-Transit, Lift Trucks
·運輸: 大眾運輸, 起重卡車
DRAWING

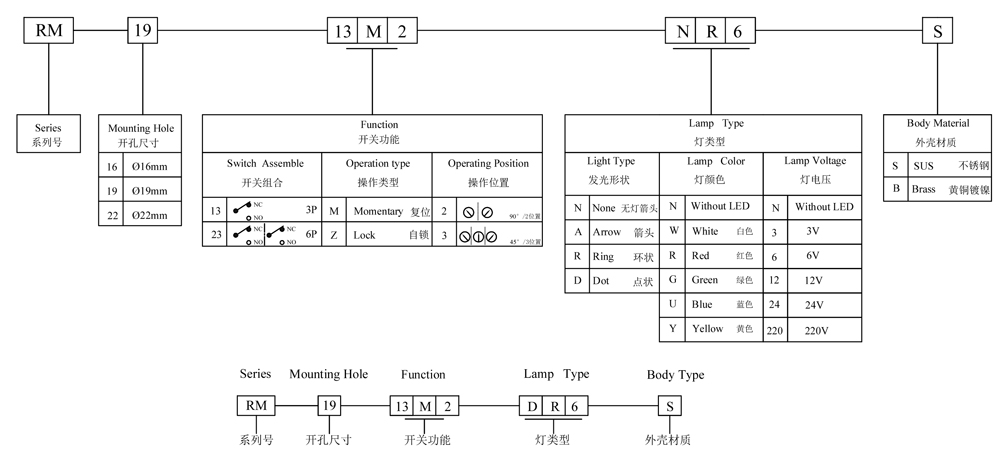

ORDER CODING DIAGRAM
