CLASSIFICATION
PRODUCT MODEL:TS26-2-BW-G-6A-S
TS26-2-BW-G-6A-S
PRODUCT SPECIFICATION:
Circuit :SPST 1P1T with LED
Current Rating :50mA
Voltage Rating :12VDC
Dielectric withstanding voltage :250VAC for 1 minute
Contact Resistance :100mΩ Max(intial )
Insulation Resistance :100MΩ Min
Operating Force :250±50gf
Total Travel :0.4±0.1 5mm
Opearating life :200,000 Cycles Min
Soldear Specifications :260°C for 3 Seconds
Function :Momentary
Openrating Temperature :-20°C~+70°C
Current Rating :50mA
Voltage Rating :12VDC
Dielectric withstanding voltage :250VAC for 1 minute
Contact Resistance :100mΩ Max(intial )
Insulation Resistance :100MΩ Min
Operating Force :250±50gf
Total Travel :0.4±0.1 5mm
Opearating life :200,000 Cycles Min
Soldear Specifications :260°C for 3 Seconds
Function :Momentary
Openrating Temperature :-20°C~+70°C
Application：
Audio / Visual 音響/視聽設備
Computer Peripherals 電腦外設
Consumer Electronics 消費類電子
Instrumentation 儀器儀表
Telecommunication 電信，通信設備
Medical Equipmen 醫(yī)療設備
DRAWING

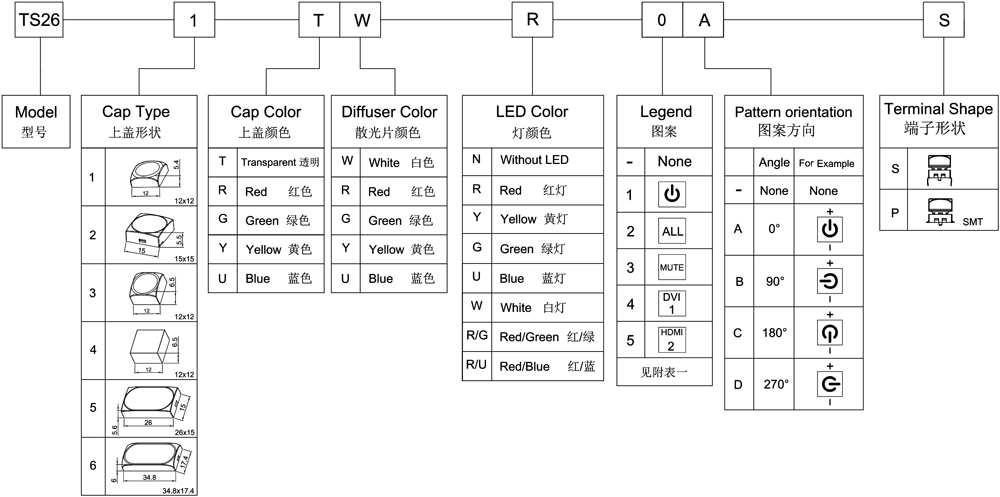

ORDER CODING DIAGRAM
