CLASSIFICATION
PRODUCT MODEL:S-03DF-02 double fuse
S-03DF-02 double fuse
PRODUCT SPECIFICATION:
Rating: 10 A 250VAC(UL CUL)
6.3A 250VAC(VDE)
10 A 250VAC(CCC)
Insulation Resistance:DC 500V 100MQ Min
Dielectric Strength:AC 2000V1minute
Fuse:?5.0x20mm
Welding method:Manual Soldering
6.3A 250VAC(VDE)
10 A 250VAC(CCC)
Insulation Resistance:DC 500V 100MQ Min
Dielectric Strength:AC 2000V1minute
Fuse:?5.0x20mm
Welding method:Manual Soldering
(350°C+5°C,3s±0.5s)
Application：
Circuit overload Protection電路過載保護
Automotive Electronics 汽車電子
Household appliances 家用電器
Beauty Equipment 美容器材
Medical equipment 醫療設備
Instruments and meters 儀器儀表
Product word：
AC power socket，three-in-one socket，two-in-one socket，
with switch and safety socket，Double fuse outlet, double fuse outlet
Automotive Electronics 汽車電子
Household appliances 家用電器
Beauty Equipment 美容器材
Medical equipment 醫療設備
Instruments and meters 儀器儀表
Product word：
AC power socket，three-in-one socket，two-in-one socket，
with switch and safety socket，Double fuse outlet, double fuse outlet
with switch and safety socket，Double fuse outlet, double fuse outlet

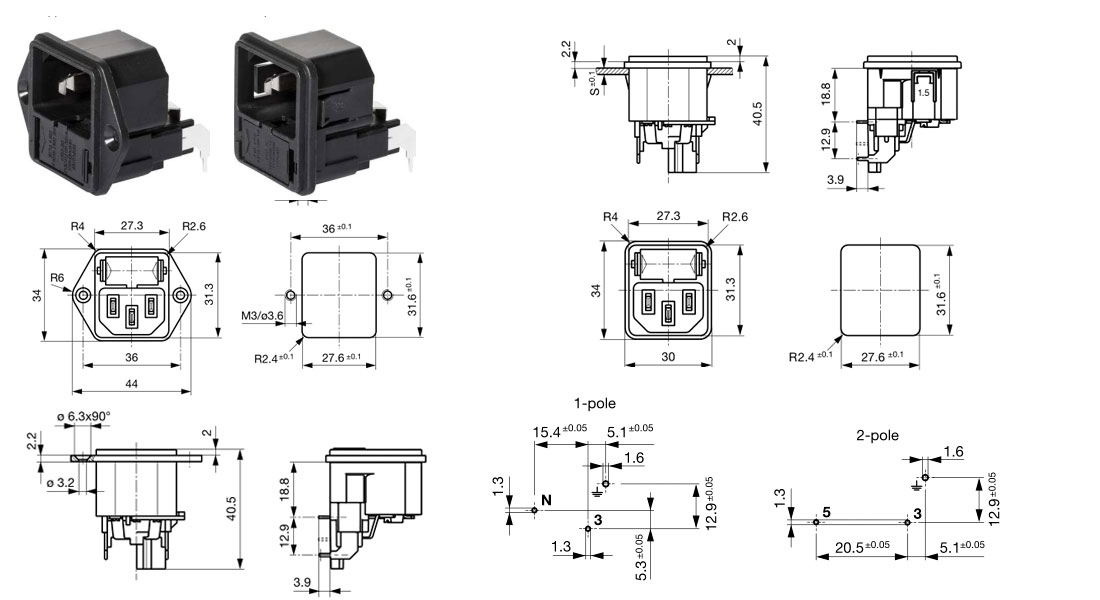

DRAWING
ORDER CODING DIAGRAM
