CLASSIFICATION
PRODUCT MODEL:T7026
T7026
PRODUCT SPECIFICATION:
Rating
15A 125V AC 1/8HP
10A 250V AC 1/3HP
Contact resistance
50mΩ Max
Insulation resistance
DC 500V 100MΩ Min
Dielectric strength
AC 1500V 1 minute
15A 125V AC 1/8HP
10A 250V AC 1/3HP
Contact resistance
50mΩ Max
Insulation resistance
DC 500V 100MΩ Min
Dielectric strength
AC 1500V 1 minute
Application：
取暖器 heater電風扇 Electric fan
監(jiān)控攝像頭 Surveillance camera
冰箱 refrigerator
空調(diào)air conditioning
轉(zhuǎn)向射燈 to shoot the light
洗衣機 washing machine
飲水機等家用電器 water dispenser
其他機械設(shè)備Other mechanical equipment

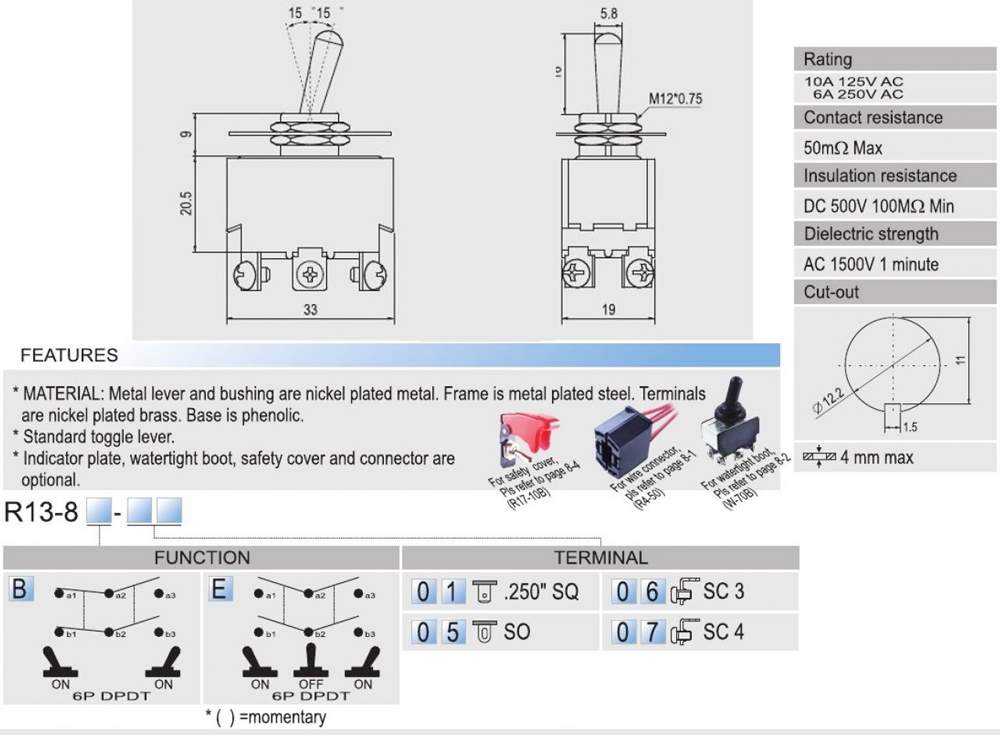

DRAWING
ORDER CODING DIAGRAM
