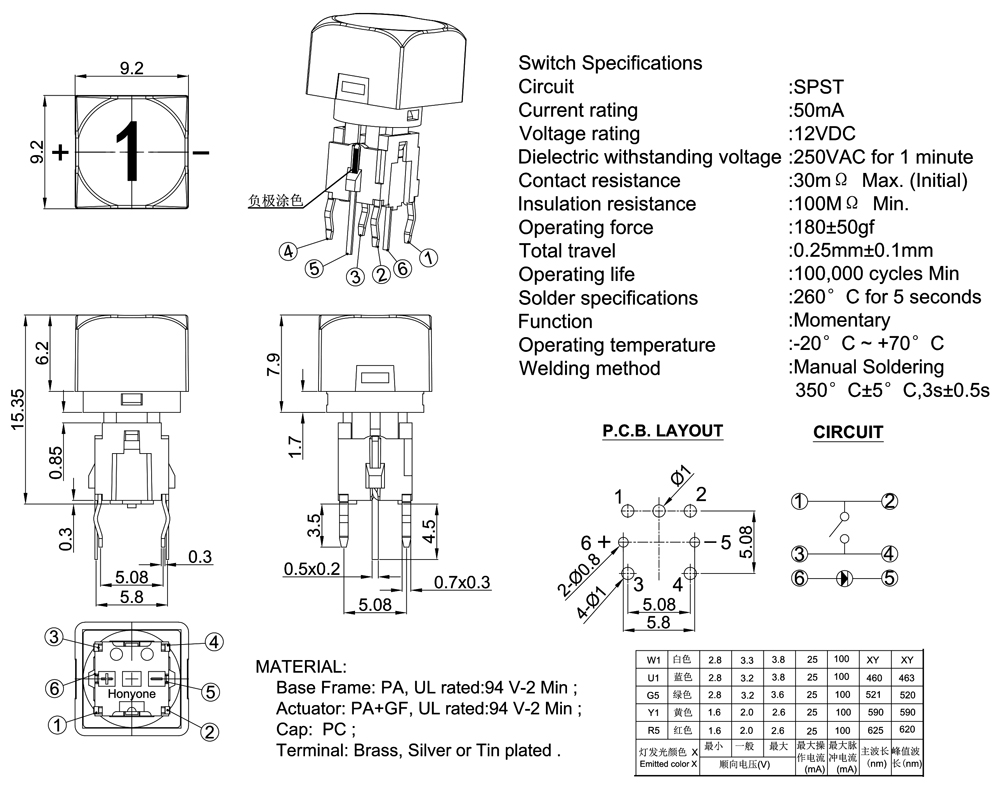

產品型號：TS5-2TU-1A-11S
TS5-2TU-1A-11S
產品規格：
Circuit :SPST 1P1T
Current Rating :50mA
Voltage Rating :12VDC
Dielectric withstanding voltage :250VAC for 1 minute
Contact Resistance :100mΩ Max .(intial)
Insulation Resistance :100MΩ Min,
Operating Force :180±50gf or 250±50gf
Total Travel :0.25±0.1mm
Opearating Force :200,000 Cycles Min
Soldear Specifications :260°C for 3 Seconds
Function :Momentary
Openrating Temperature :-20°C~ +70°C
應用領域：
Audio / Visual 音響/視聽設備
Computer Peripherals 電腦外設
Consumer Electronics 消費類電子
Instrumentation 儀器儀表
Telecommunication 電信，通信設備
Medical Equipmen 醫療設備
