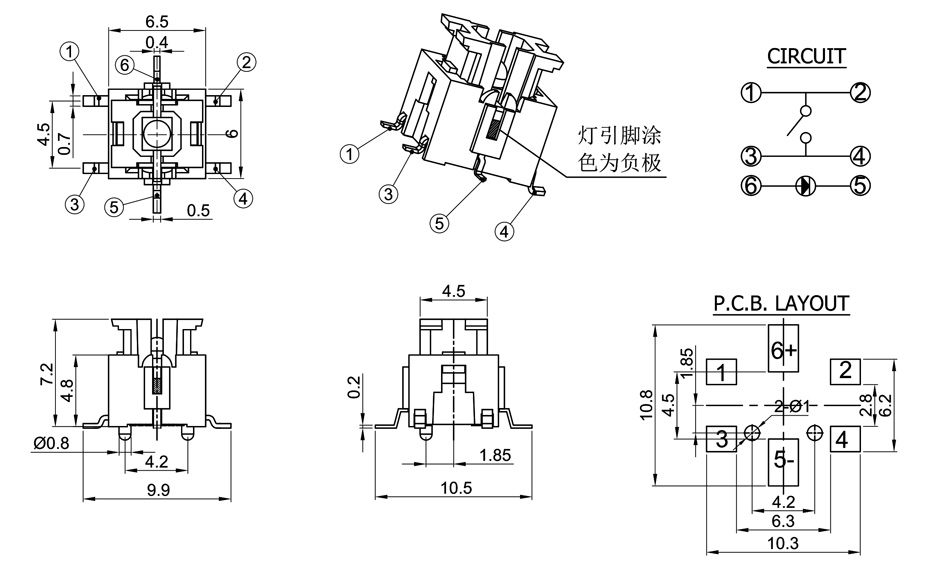

產品型號：TS2-00-00W-0N-(24)-2P
TS2-00-00W-0N-(24)-2P
產品規(guī)格：
Circuit :SPST 1P1T
Current Rating :50mA
Voltage Rating :12VDC
Dielectric withstanding voltage :250VAC for 1 minute
Contact Resistance :100mΩ Max .(intial)
Insulation Resistance :100MΩ Min,
Operating Force :180±50gf or 250±50gf
Total Travel :0.25±0.1mm
Opearating Force :200,000 Cycles Min
Soldear Specifications :260°C for 3 Seconds
Function :Momentary
Openrating Temperature :-20°C~ +70°C
應用領域：
輕觸開關有接觸電阻荷小、精確的操作力誤差、規(guī)格多樣化等方面的優(yōu)勢，在電子設備及白色家電等方面得到廣泛的應用如:彩色電視機、黑白電視機、音響設備、錄像機、攝像機、計算機、游戲機、傳真機、對講機、警棍、機床控制裝置、復印、打印機、電子儀器、儀表和其它家用電器。
