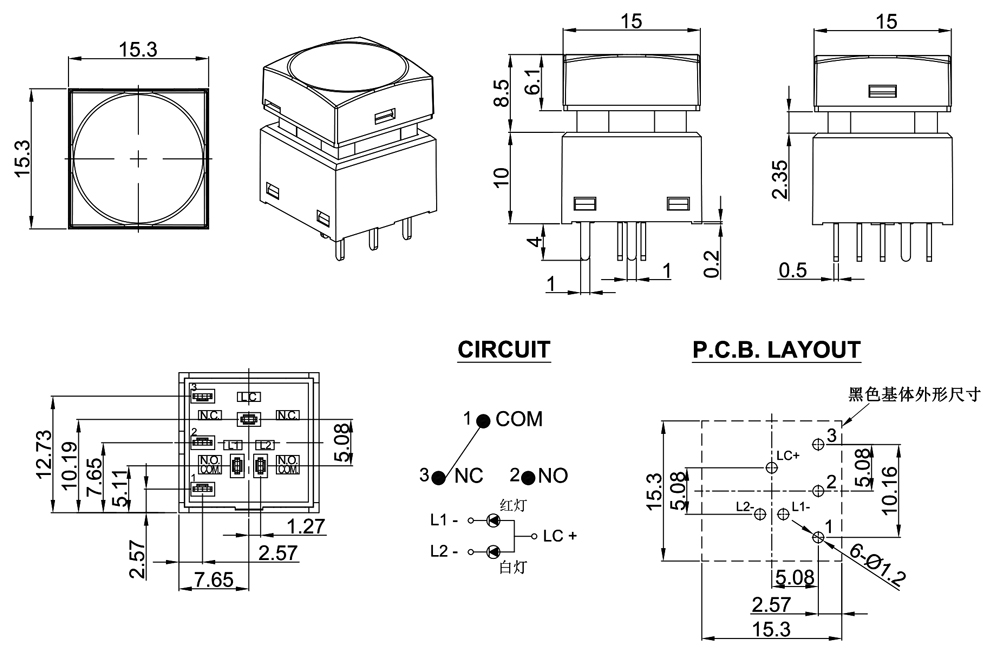

產品型號：PB26-13M-B-WW-RW-X
PB26-13M-B-WW-RW-X
產品規格：
Circuit :SPDT
Rating :0.4VA 28VDC
Contact resistance :100mΩ Max.
lnsulation resistance :DC 500V 10OMΩ Min.
Withstand voltage :AC 500V for 1 minute;
Operating force :200±100gf ;
Total travel :2.2±0.5mm
Mechanical life :Over 200,000 cycles;
Electrical life :Over 100,000 cycles;
Manual welding :350°C for 3 seconds
Operating temperature :-25°C~+70°C
應用領域：
Video processor 視頻處理器
Security Monitoring Equipment
安防監控設備
Teaching recording and broadcasting equipment
教學錄播設備
Consumer Electronics 消費類電子
Audio equipment 音響設備
