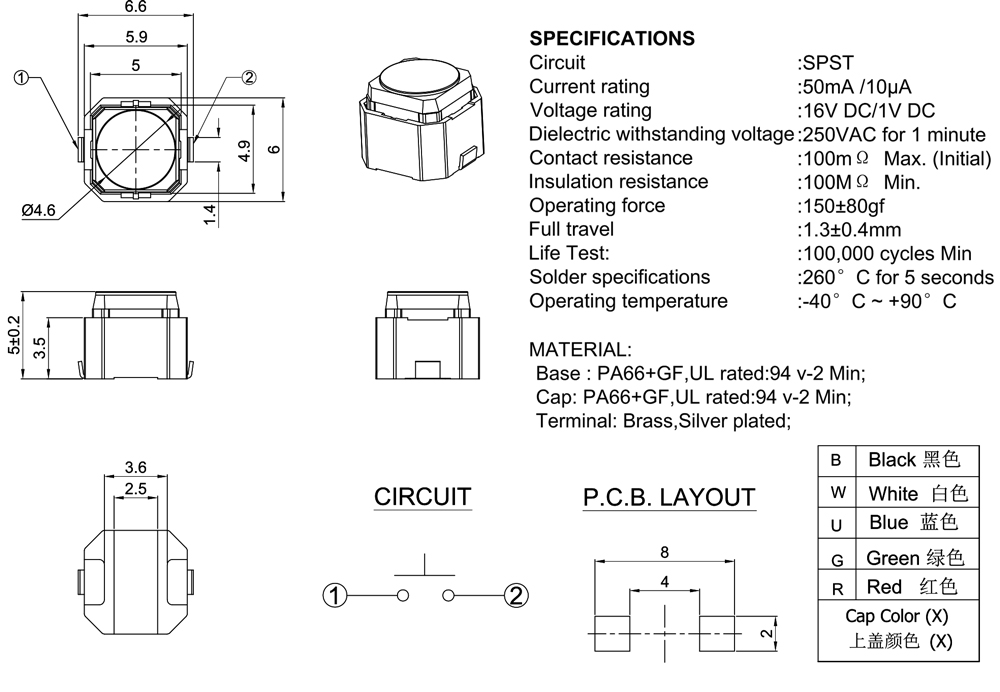

產品規(guī)格：
Circuit:SPST
Current Rating:50mA/μA10
Voltage Rating:16V DC/1V DC
Dielectric withstanding voltage :250VAC for 1 minute
Contact Resistance:100mΩ Max.(intial )
Insulation Resistance :100MΩ Min.
Operating Force:150±80gf
Full Travel:1.3±0.4mm
Life Test:100,000 Cycles Min
Soldear Specifications:260°C for 5 Seconds
Openrating Temperature:-40°C~ +90°C
應用領域：
Audio / Visual 音響/視聽設備
Computer Peripherals 電腦外設
Consumer Electronics 消費類電子
Instrumentation 儀器儀表
Telecommunication 電信，通信設備
Medical Equipmen 醫(yī)療設備
