產品型號：PB26-23M-A-WT-GN
PB26-23M-A-WT-GN
產品規格：

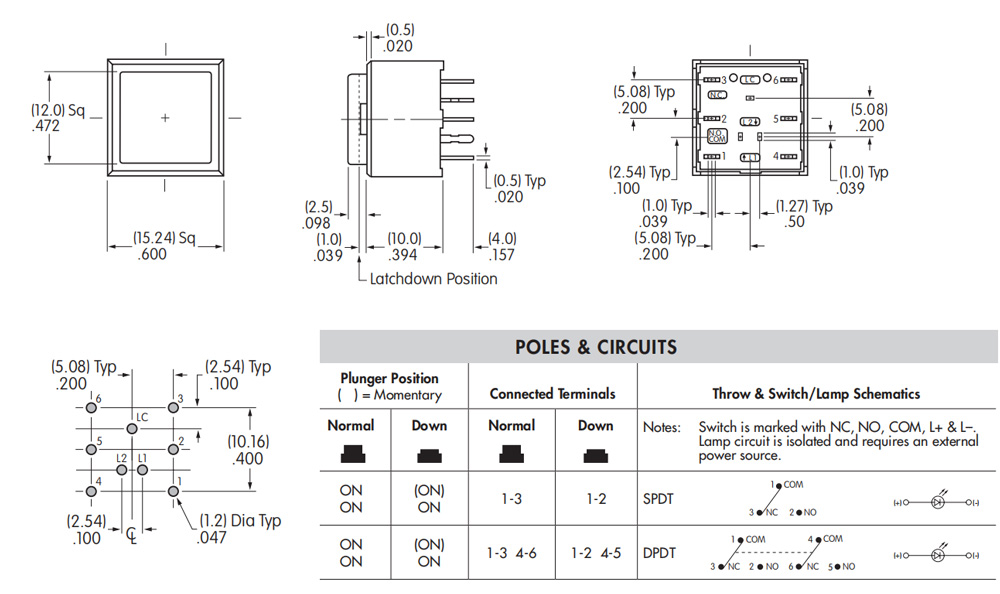

Circuit :SPDT DPDT
Rating :0.4VA 28VDC
Contact resistance :100mΩMax
Insulation resistance :DC500V 100MΩMin.
Withstand voltage :AC500Vfor 1minute; .
Operating Force :Single pole:200±100gf;
:Double pole:300±100gf;
Total Travel :2.0±0.5mm
Mechanical life :Over 20000cycles;
Electrical life :Over 30,000cycles
Manual welding :350°Cfor 3 seconds
Openrating Temperature:-25°C~+70C
應用領域：
Video processor 視頻處理器
Security Monitoring Equipment
安防監控設備
Teaching recording and broadcasting equipment
教學錄播設備
Consumer Electronics 消費類電子
Audio equipment 音響設備
