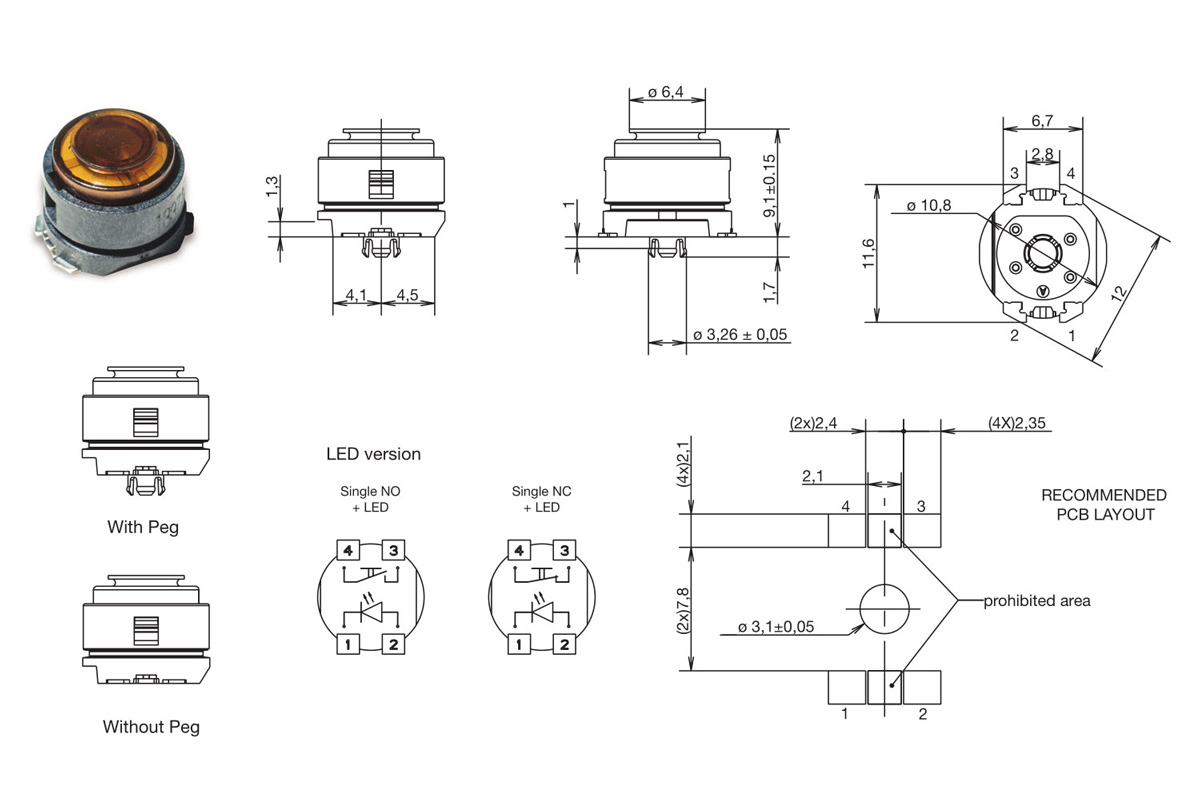

產品型號：KS12-SL1.5-BOO-5N-P
KS12-SL1.5-BOO-5N-P
產品規格：
VOLTAGE MIN./MAX.: 2 V DC / 30 V DC
CURRENT MIN./MAX.: 10 mA /100 mA
DIELECTRIC STRENGTH (50 Hz, 1 min): ≥ 500 V
TOTAL TRAVEL: 1 mm, 1,5 mm, 2 mm
OPERATING LIFE :1,000,000 operations
CONTACT RESISTANCE: Initial ≤ 50 mΩ
INSULATION RESISTANCE: ≥ 100M Ω
BOUNCE TIME: ≤ 1 ms
Operating speed 100 mm/s (3.94/s)
PROTECTION CLASS: IP 40/IP67(KS12C)
OPERATING TEMPERATURE: -40?C to 85?C
應用領域：
? Electronic handle 電控手柄
? Off-road transportation 戶外交通運輸
? Joysticks 操縱桿
? Typically used in cranes 起重機
? Construction equipment 建筑工程機械
? Agricultural equipment 農業設備
? Mining,equipment. 采礦設備
? Computers & network equipment
電腦周邊設備
