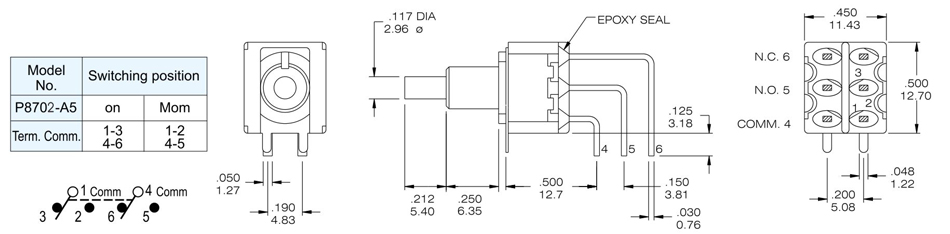

產品型號：P8702-A5-R-E
P8702-A5-R-E
產品規格：
Contact Rating: 1A @125 VAC or 28 VDC
Electrical Life: 50,000 make and break cycles at full load
Contact Resistance: 20 mΩ max. initial @2-4 VDC,100 mA
Insulation Resistance: 1,000 MΩ min.
Dielectric Strength: 1,000 V RMS @ sea level.
Operating Temperature: -30°C to 85°C
CASE: diallyl phthalate (DAP)
PLUNGER: Glass filled nylon or glass filled polyester (UL94V-0)
BUSHING: Copper alloy, nickel plated
HOUSING: Stainless Steel
CONTACT & TERMINAL: Copper alloy, silver plated
應用領域：
取暖器 heater
電風扇 Electric fan
監控?cái)z像頭 Surveillance camera
冰箱 refrigerator
空調air conditioning
轉向射燈 to shoot the light
洗衣機 washing machine
飲水機等家用電器 water dispenser
其他機械設備Other mechanical equipment
