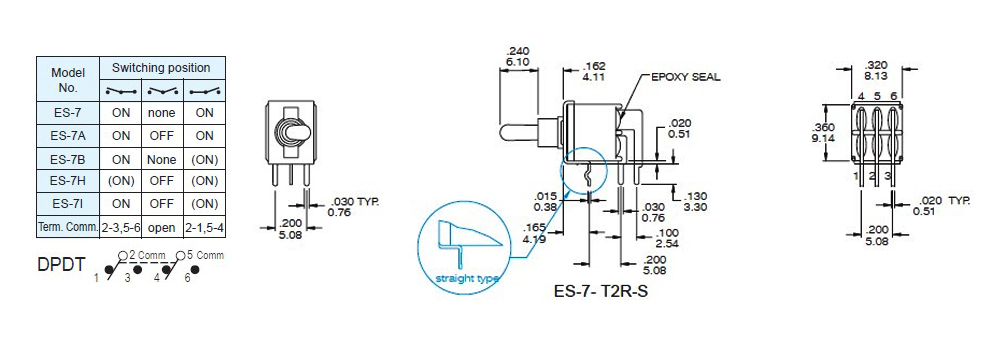

產品型號：ES-7-T2R-S
ES-7-T2R-S
產品規格：
Contact Rating: R- 0.4 VA max @ 20 V AC or DC
Electrical Life: 30,000 make and break cycles at full load
Contact Resistance: 20 mΩ max. initial @2-4 VDC,100 mA
Insulation Resistance: 1,000 MΩ min.
Dielectric Strength: 1,500 V RMS @ sea level.
ESD Resistant Option: P2 insulating actuator
only: 9,000 VDC min. @ sea level,actuator to terminals.
Degree of Protection: IP67
Operating Temperature: -30°C to 85°C
Sealed construction - internal actuator o-ring
Epoxy terminal seal standard
Carry the IP67 approvals
應用領域：
取暖器 heater
電風扇 Electric fan
監控?cái)z像頭 Surveillance camera
冰箱 refrigerator
空調air conditioning
轉向射燈 to shoot the light
洗衣機 washing machine
飲水機等家用電器 water dispenser
其他機械設備Other mechanical equipment
