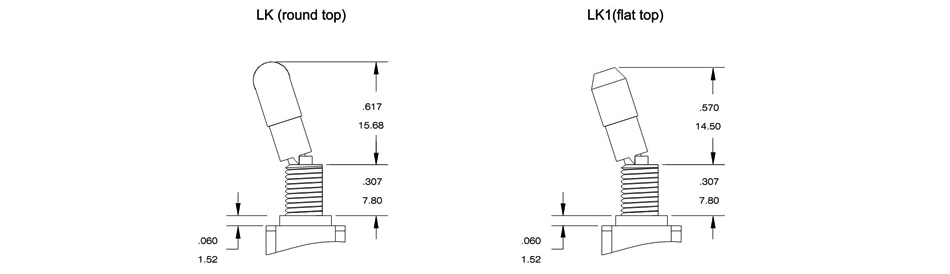

產品型號：T8011-LK-ECQ（帶鎖型）
T8011-LK-ECQ（帶鎖型）
產品規格：
Contact Rating :5a @ 120 VAC Or 28 VDC(Q Contact)
Electrical Life:50,000 Make- and-break Cycles At Full Load
Contact Resistance:1 0mΩ Max.
Initial @2- .4 VDC, 100 Ma
Insulation Resistance:1 ,000 MΩ Min.
Dielectric Strength:1 ,500 V RMS @ Sea Level.
Operaating Tempearation :-30C ~ 85C
應用領域：
取暖器 heater
電風扇 Electric fan
監控?cái)z像頭 Surveillance camera
冰箱 refrigerator
空調air conditioning
轉向射燈 to shoot the light
洗衣機 washing machine
飲水機等家用電器 water dispenser
其他機械設備Other mechanical equipment
